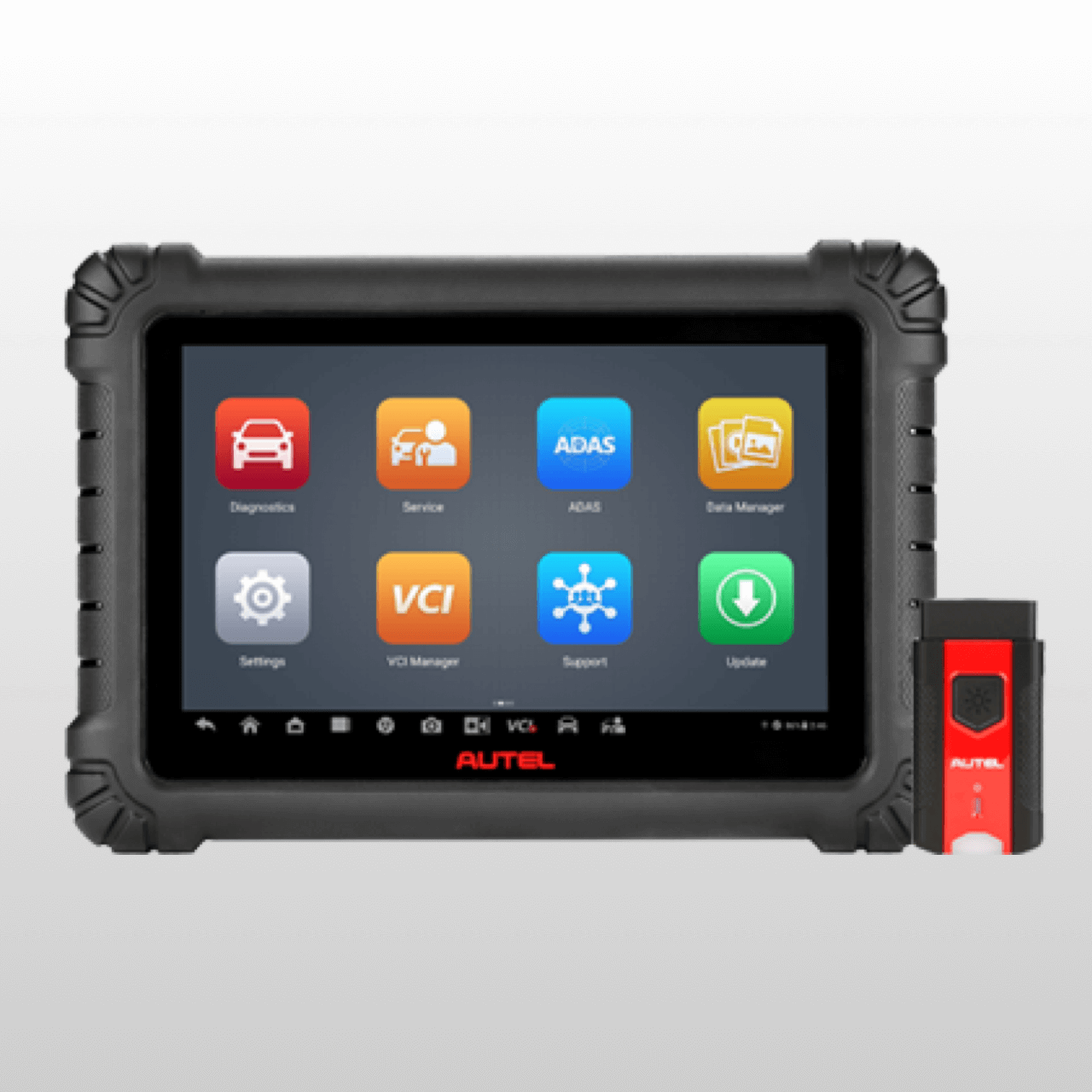

MaxiSYS 906S MAX
Product information
£1,695.00 excl. VAT
Product Description
The MaxiSYS 906S MAX represents the cutting edge of automotive diagnostic technology, combining powerful hardware with comprehensive software capabilities in a sleek, professional-grade tablet.
Powered by an octa-core processor with 128GB storage and 4GB RAM, this professional-grade device provides unrivalled coverage.
The system employs AUTO SCAN 2.0 technology for swift all-system diagnostics, enabling efficient pre- and post-repair scans while handling diagnostic trouble codes, freeze frame data, and real-time vehicle monitoring. Built for versatility, the device features over 40 routine maintenance functions, including oil light resets, DPF regeneration, steering angle sensor calibration, airbag resets, and brake bleeding procedures.
The included Bluetooth-enabled MaxiVCI V200 interface supports modern protocols like DoIP and CAN FD, ensuring reliable vehicle communication. Advanced capabilities include bi-directional control, coding functions, and adaptation procedures essential for contemporary vehicle servicing. The MaxiSYS 906S MAX enhances workshop efficiency through Wi-Fi printing and seamless report sharing via QR codes, text messages, or email. Its expandability accommodates future diagnostic needs with optional accessories like video scope capabilities and battery testing equipment.
Most importantly, the system can be upgraded for ADAS calibration through a software update and Autel Calibration System addition, preparing workshops for advanced driver assistance systems maintenance. This combination of diagnostic capabilities, user-friendly features, and future-proof expandability makes the MaxiSYS 906S MAX an essential tool for modern automotive professionals.
Product Features
- Advanced diagnostic tablet compatible with American, Asian, and European vehicles, 1996 and newer
- 10.1-inch Wireless Touchscreen tablet with Bluetooth-enabled MaxiVCI V200
- Octa-Core Processor/128 GB memory / 4 GB RAM
- Performs all system scans with ADAS identification/ Customisable Pre & Post scans, Read/Erase Codes, View Freeze Frame and Live Data
- Bi-directional control capability including Active test/Performs coding and adaptations
- AUTO SCAN 2.0 maximises diagnostics capabilities with faster all-system scan
- Extensive Service Menu: Quick access to 40+ of the most common maintenance tasks
- Features Wi-Fi print functionality and supports Videoscope and Battery testing
- Supports the latest communication protocols, including DoIP and CAN FD
- One-touch report sharing via QR codes, text messages, or emails
- ADAS Calibration-capable with software upgrade and Autel Calibration System purchase
Product Specification
- Android 10 operating system.
- Octa-core processor.
- 4 GB of RAM and 128 GB of onboard memory.
- 11600 mAh 3.85 V lithium-polymer battery
- 10.1-inch LCD capacitive touchscreen with a resolution of 1920 x 1200.
- Rear 13 MP camera.
- Wi-Fi connectivity (802.11 a/b/g/n/ac).
- Bluetooth 5.0 (BR/EDR + BLE) capabilities.
- GPS functionality is built-in.
- Two USB 2.0 Host Type A ports and one Mini USB port.
- Supports SD cards up to 256 GB.
- Audio input and output, with microphone, dual speakers, and a 3-band or 4-band 3.5 mm headset jack.
- Operating temperature range is 0 °C to 50 °C (32 °F to 122 °F).
- Storage temperature range is -10 °C to 60 °C (14 °F to 140 °F).
- Supports a wide range of protocols, including ISO13400, CAN FD, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), and SAE-J1850 VPW (GM Class2).
