IA600 Camera Pack ADAS
Product information
£10,995.00 excl. VAT
Product Description
Perfect for mobile or use within the workshop, building on the original Autel calibration frame, the new IA600 now offers computerised camera setup saving time and increasing accuracy along with a fully documented reporting to show Pre / Post Scans, Calibration results and tool setup making it one of the most comprehensive ADAS calibration reports to date.
It's designed for the technician who needs to be able to calibrate all ADAS systems including Lane Departure Warning, Adaptive Cruise Control, Rear Collision Warning, Night Vision, Blind Spot and Radar/Camera collision avoidance systems. The IA600 is sold with a 'full bundle' with includes Camera setup configuration (just like the advanced IA900) plus various patterns and boards packaged together to save the customer money.
There are also an extensive range of extra specialist patterns, boards and simulators to enable the technical to calibrate many static ADAS calibrations.
The Autel ADAS software will also enable the technician to undertake dynamic calibrations, where the car must be put in learn mode, but does not require the use of an ADAS frame. The IA600 is can be used with the MS906sPro, MS906sProTSC, MS909, MS919 and MS Ultra diagnostic tools.
The Autel ADAS tools were tested by Thatcham and successfully completed all test procedures in 2020.
Product Comparison
IA600 Camera Pack Edition
£10,995.00 excl. VAT
|
IA900WA Basic
£18,995.00 excl. VAT
|
IA900WA Full
£19,995.00 excl. VAT
|
|
| ADAS Frame | IA600 | IA900WA | IA900WA |
|---|---|---|---|
| Compatiable With | MSUltra, MS919, MS909, MS906sProTSC, MS906sPro | MSUltra, MS919 or MS909 | MSUltra, MS919 or MS909 |
| ADAS Software | |||
| Wheel Clamps (100002747) | |||
| Wheel Alignment | |||
| Camera Configuration | |||
| Crossbar | |||
| 24” touchscreen monitor | |||
| Distance target (CSC0500/08) | |||
| Tire clamps (100002747) | NO | Yes as Option | Yes as Option |
| Steering wheel blocker (CSC0500/27) | |||
| Brake block (CSC0500/26) | |||
| Wedge block (303001077) | |||
| ACC Calibration Mirror (CSC0602/01) | |||
| LDW Target board Volkswagen (CSC0601/01) | |||
| LDW Target board Mercedes (CSC0601/02) | |||
| Hex Wrench (CSC0602/06) | |||
| Mini Reflector (CSC0602/07) | |||
| Honda Lane Maintenance Pattern Type 2 - Left and Right (CSC0601/08) | |||
| Honda Lane Maintenance Pattern Type 1 (CSC0601/05) | |||
| Toyota / Lexus Lane Maintenance Pattern 1 (CSC0601/11) | |||
| Toyota / Lexus Lane Maintenance Pattern 2 (CSC0601/15) | |||
| Hyundai / Kia Lane Maintenance (CSC0601/09) | |||
| Nissan / Infiniti LDW (CSC0601/06) | |||
| Nissan LDW (CSC0601/03) | |||
| Hyundai / Kia Lane Maintenance (CSC0601/07) | |||
IA600 Camera Pack Edition
£10,995.00 excl. VAT
- ADAS Frame
- IA600
- Compatiable With
- MSUltra, MS919, MS909, MS906sProTSC, MS906sPro
- ADAS Software
- Wheel Clamps (100002747)
- Wheel Alignment
- Camera Configuration
- Crossbar
- 24” touchscreen monitor
- Distance target (CSC0500/08)
- Tire clamps (100002747)
- NO
- Steering wheel blocker (CSC0500/27)
- Brake block (CSC0500/26)
- Wedge block (303001077)
- ACC Calibration Mirror (CSC0602/01)
- LDW Target board Volkswagen (CSC0601/01)
- LDW Target board Mercedes (CSC0601/02)
- Hex Wrench (CSC0602/06)
- Mini Reflector (CSC0602/07)
- Honda Lane Maintenance Pattern Type 2 - Left and Right (CSC0601/08)
- Honda Lane Maintenance Pattern Type 1 (CSC0601/05)
- Toyota / Lexus Lane Maintenance Pattern 1 (CSC0601/11)
- Toyota / Lexus Lane Maintenance Pattern 2 (CSC0601/15)
- Hyundai / Kia Lane Maintenance (CSC0601/09)
- Nissan / Infiniti LDW (CSC0601/06)
- Nissan LDW (CSC0601/03)
- Hyundai / Kia Lane Maintenance (CSC0601/07)
IA900WA Basic
£18,995.00 excl. VAT
- ADAS Frame
- IA900WA
- Compatiable With
- MSUltra, MS919 or MS909
- ADAS Software
- Wheel Clamps (100002747)
- Wheel Alignment
- Camera Configuration
- Crossbar
- 24” touchscreen monitor
- Distance target (CSC0500/08)
- Tire clamps (100002747)
- Yes as Option
- Steering wheel blocker (CSC0500/27)
- Brake block (CSC0500/26)
- Wedge block (303001077)
- ACC Calibration Mirror (CSC0602/01)
- LDW Target board Volkswagen (CSC0601/01)
- LDW Target board Mercedes (CSC0601/02)
- Hex Wrench (CSC0602/06)
- Mini Reflector (CSC0602/07)
- Honda Lane Maintenance Pattern Type 2 - Left and Right (CSC0601/08)
- Honda Lane Maintenance Pattern Type 1 (CSC0601/05)
- Toyota / Lexus Lane Maintenance Pattern 1 (CSC0601/11)
- Toyota / Lexus Lane Maintenance Pattern 2 (CSC0601/15)
- Hyundai / Kia Lane Maintenance (CSC0601/09)
- Nissan / Infiniti LDW (CSC0601/06)
- Nissan LDW (CSC0601/03)
- Hyundai / Kia Lane Maintenance (CSC0601/07)
IA900WA Full
£19,995.00 excl. VAT
- ADAS Frame
- IA900WA
- Compatiable With
- MSUltra, MS919 or MS909
- ADAS Software
- Wheel Clamps (100002747)
- Wheel Alignment
- Camera Configuration
- Crossbar
- 24” touchscreen monitor
- Distance target (CSC0500/08)
- Tire clamps (100002747)
- Yes as Option
- Steering wheel blocker (CSC0500/27)
- Brake block (CSC0500/26)
- Wedge block (303001077)
- ACC Calibration Mirror (CSC0602/01)
- LDW Target board Volkswagen (CSC0601/01)
- LDW Target board Mercedes (CSC0601/02)
- Hex Wrench (CSC0602/06)
- Mini Reflector (CSC0602/07)
- Honda Lane Maintenance Pattern Type 2 - Left and Right (CSC0601/08)
- Honda Lane Maintenance Pattern Type 1 (CSC0601/05)
- Toyota / Lexus Lane Maintenance Pattern 1 (CSC0601/11)
- Toyota / Lexus Lane Maintenance Pattern 2 (CSC0601/15)
- Hyundai / Kia Lane Maintenance (CSC0601/09)
- Nissan / Infiniti LDW (CSC0601/06)
- Nissan LDW (CSC0601/03)
- Hyundai / Kia Lane Maintenance (CSC0601/07)
Product Features
- Portable: Easily foldable frame create freedom to calibrate faster in many locations
- Precise: The new camera set-up and accessories provide a quicker levelling process with vehicle for millimetre Ruler Accuracy
- Adjustable: Fine-tuning nobs to easily
- Smart: Compatible use with levelling lift adjustment.
- Accurate: Regular updates of latest OE-Level diagnostic & calibration software for Correct calibration results.
- Intuitive: Tutorial graphics & step-by-step instructions. Pre-Scan & Post-scan Reports (ADAS module identification, Calibration)
- Expansive: Wider vehicle coverage. Extend camera calibration to AVM and RCW systems with purchase of oversize patterns.
The MaxiSYS IA600 includes;
- ADAS Software
- Modify to IA600 ADAS Frame
- IA800/IA600 Camera Kit + 4 wheel clamps
- LDW Target Board Volkswagen
- LDW Target Board Mercedes
- ACC Calibration Mirror
- Nissan LDW System
- Honda LDW System
- Nissan, Infinity LDW System
- Hyundai/KIA/Jeep/Fiat/PSA LWD Pattern
- Honda LDW System
- Hyundai/KIA LDW Pattern
- Toyota/Lexus LDW System
The MaxiSYS tablet is not included.
Product Specification
- Calibration Frame Dimensions (WxDxH): 2510mm (98.82”) x 714mm (28.11”) x 1480-2105 mm (58.27-82.87”)
- Calibration Frame Weight: 74.5 kg (164.24 lb.), GW: 152kg (335.1 lb.)
- Pattern Board Size: (LxW) 1360mm (53.54”) x 960mm (37.80”)
- Crossbar Length:2510mm (98.82”)
- Measurement Range of Crossbar's Height: Height min=350mm (13.78”), Height max=950mm (37.40”)
- Measurement Range of Pattern Board 's Height: Height min=1000mm (39.37”), Height max=1600mm (62.99”)
- Rated Power:24 V, 3A
- Laser Rated Power: 3V, 25mA
- Laser Battery Type:AA 2x1.5V
- Calibration Frame Working Temp: 0℃ to 50℃
- Calibration Frame Storage Temp: -20℃ to 60°C
- Laser Class Class 2 Certification: CE, FCC, RoHS
The IA600 Camera Pack
The MaxiSYS IA600 Camera Pack contains a range of ADAS components that will be commonly used in your workshop. PATTERNS SUPPLIED MAY VARY FROM TIME TO TIME. THE LIST ABOVE IS ACCURATE AS AT SEPTEMBER 2023.
IA600 Main Frame

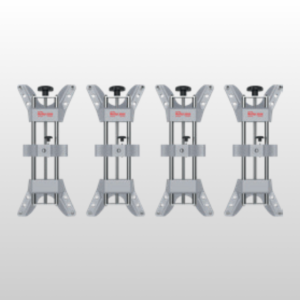

Wheel Clamps
Camera Configuration
ACC Calibration Mirror (CSC0602/01)
Hex Wrench (CSC0602/06)
Volkswagen LDW (CSC0601/01)
Mini Reflectors (CSC0602/07)
Honda Lane Maintenance Pattern Type 2 - Left and Right (CSC0601/08)
Honda Lane Maintenance Pattern Type 1 (CSC0601/05)
Toyota / Lexus Lane Maintenance Pattern 1 (CSC0601/11)
Toyota / Lexus Lane Maintenance Pattern 2 (CSC0601/15)
Hyundai / Kia LDW (CSC0601/09)

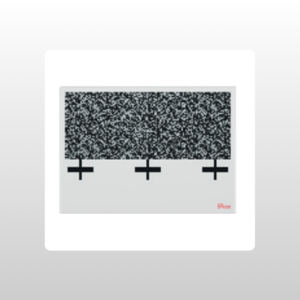

Nissan / Infiniti LDW (CSC0601/06)
Nissan LDW (CSC0601/03)
Hyundai / Kia LDW (CSC0601/07)
LDW Target Board Mercedes

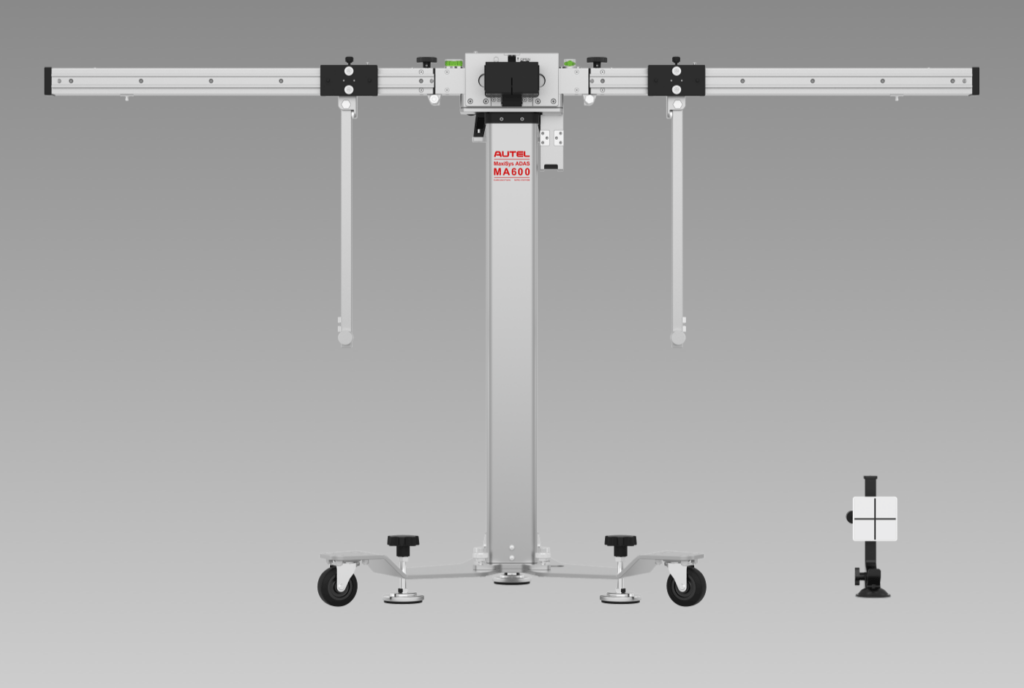

A Light-weight all-in-one ADAS solution
Portable
Easily foldable frame create freedom to calibrate faster in many locations
Precise
The new distance laser and accessories provide a quicker levelling process with vehicle for Millimetre Ruler Accuracy
Adjustable
Fine-tuning nobs to easily
Advance ADAS Passive & Active Features
Active Features
- Lane Keeping Assist
- Collision Avoidance System
- Parking Assist
- Blind Spot Intervention
- Automatic Parking
- Night Vision Assist
Passive Features
- Lane Departure Warning
- Adaptive Cruise Control
- Rear Collision Warning
- Blind Spot Detection
- Around View Monitoring
- Night Vision System
